Fiberglass Woven Roving
Fiberglass woven roving is a heavy-duty, bidirectional reinforcement fabric made from continuous E-glass roving in plain or twill weave. It’s applicable for hand lay-up, winding and compress molding process, suitable for manufacturing tank, boat, automobile parts, and other FRP product.
Regular weights are ranging from 200gsm to 800gsm.
- Overview
- Recommended Products
Description

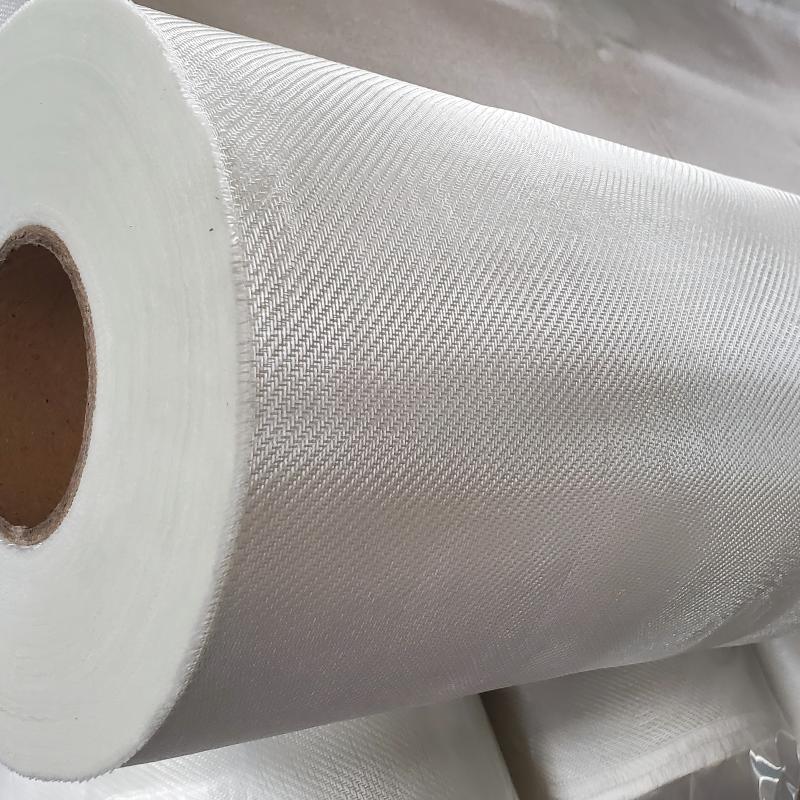

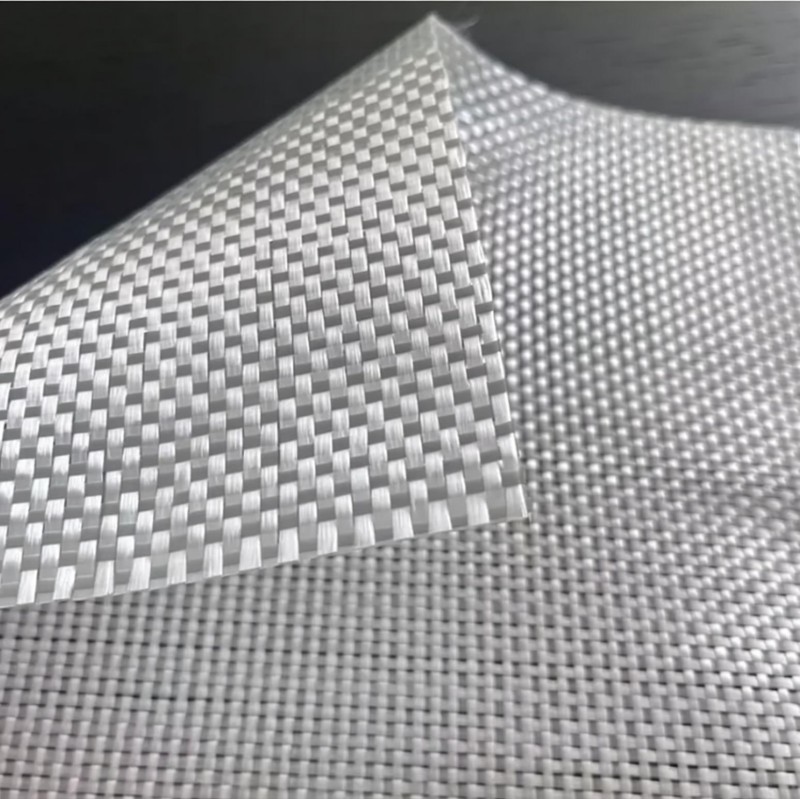

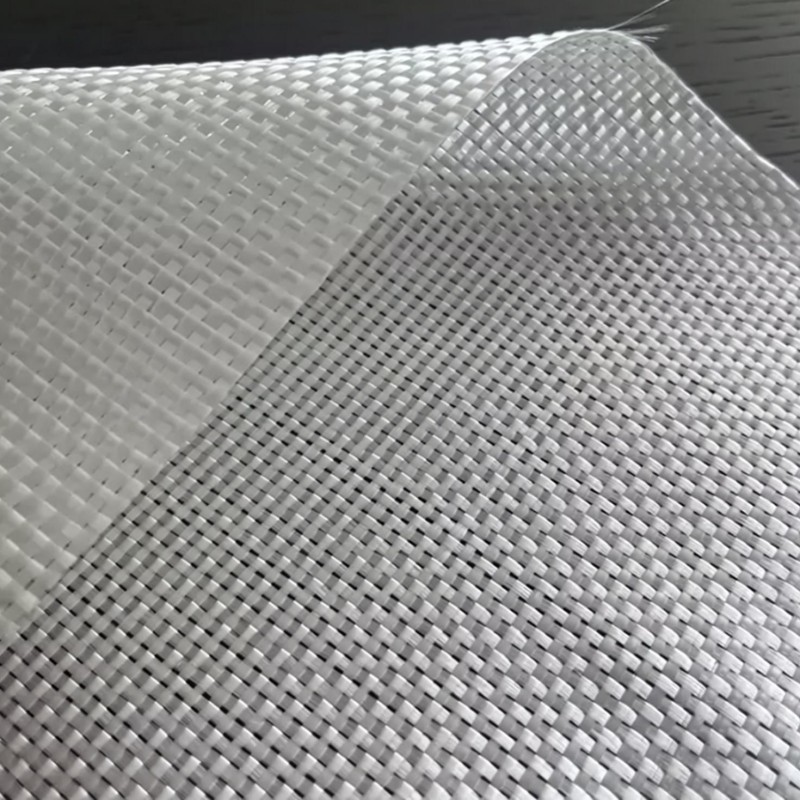

Fiberglass woven roving is a heavy-duty, bidirectional reinforcement fabric made from continuous E-glass roving in plain or twill weave. The roving is designed to give control wet-out and excellent laminate property.
It’s used to rapidly build thickness and strength in composite parts such as boat hulls, structural panels. It’s applicable for hand lay-up, winding and compress molding process, suitable for manufacturing tank, boat, automobile parts, and other FRP product.

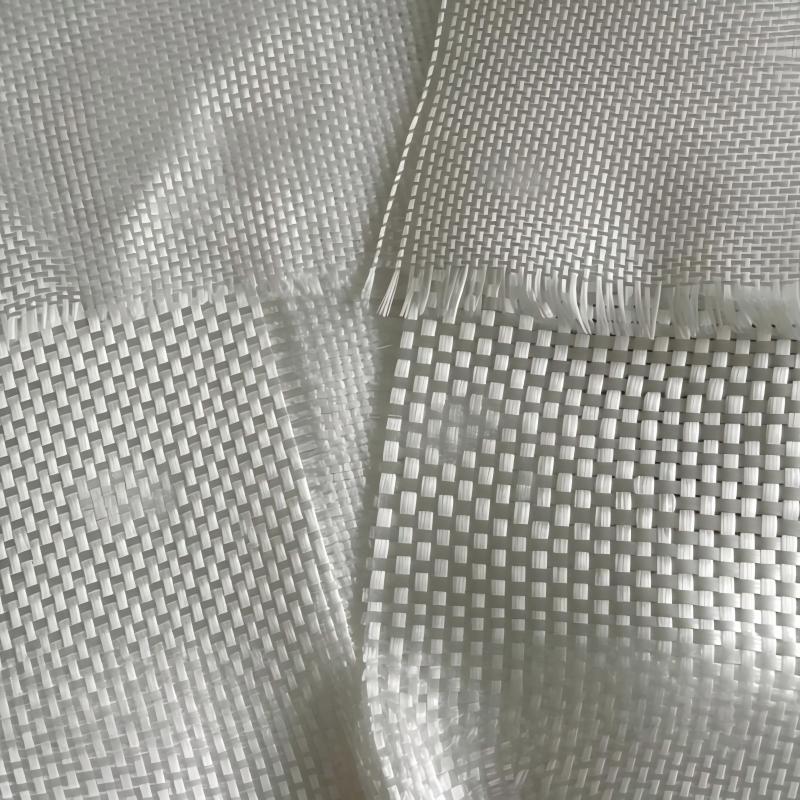

We have different thick glass fibre fabric for your selection.
 |
 |
 |
 |

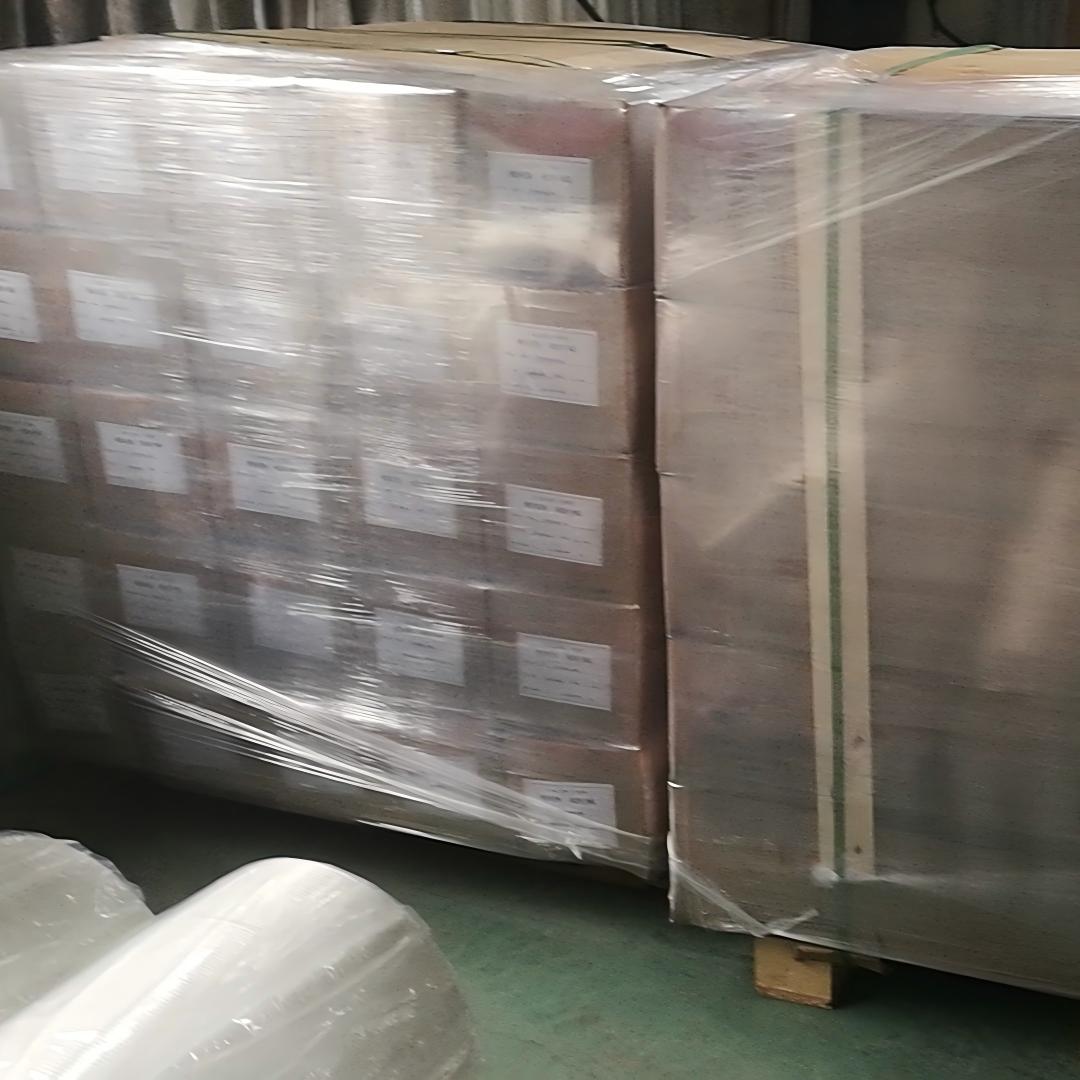

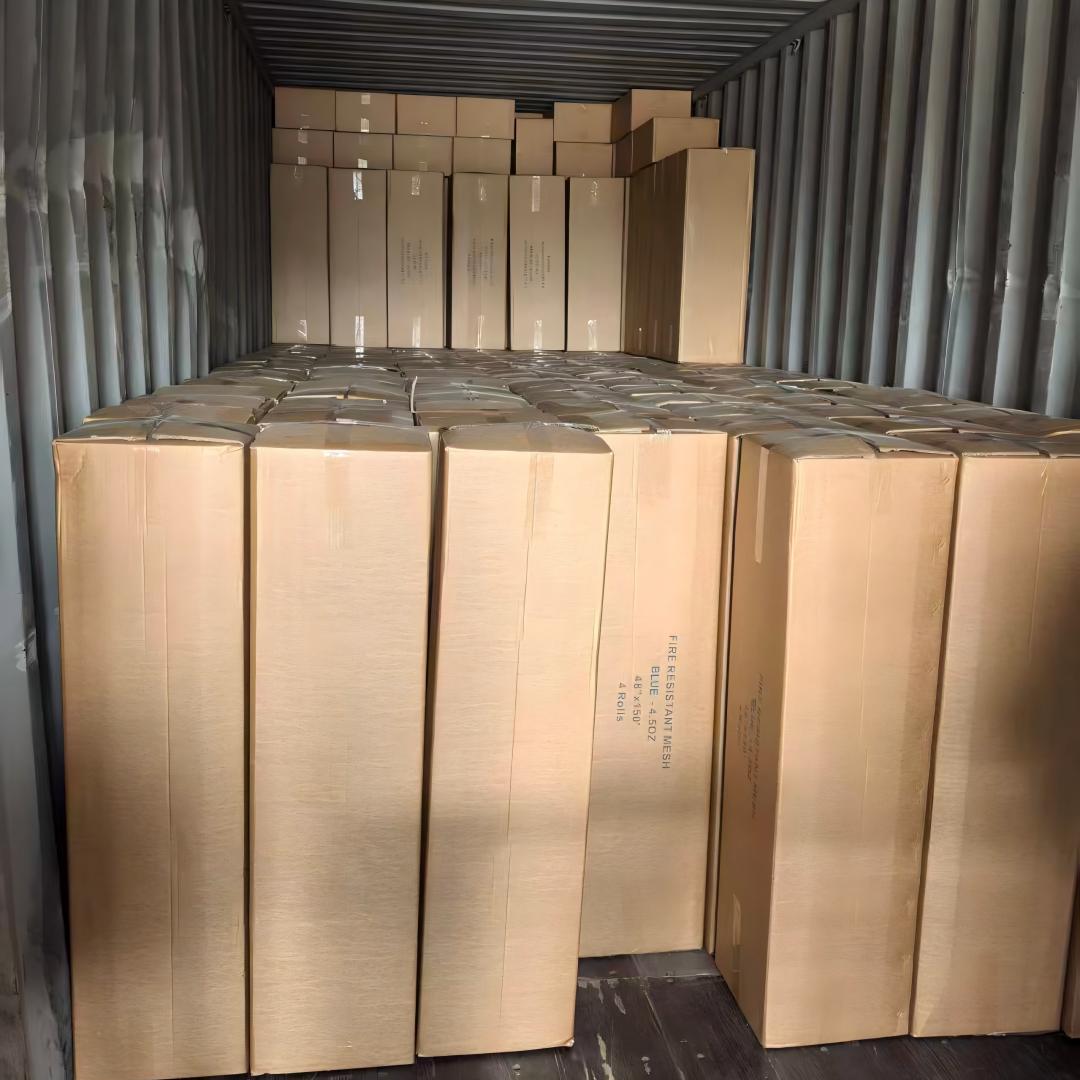

Packaging and delivery
 |
 |
1. Each roll is packed by poly bag and one carton;
2. Each roll is between 20 to 85 kg.
3. The rolls are to be horizontally placed and could be in bulk or pallet.
Applications
1. Marine Industry: Woven Roving can be used in the construction of hulls, decks, and superstructures of boats and yachts. The high - strength and lightweight nature of fiberglass woven roving make it an ideal material for reducing the overall weight of the vessel while maintaining structural integrity.
2. Automotive Industry: Fiberglass woven roving can be used in the production of automotive body parts such as hoods, fenders, and spoilers, due to glassfiber’s light weight & high strength .
3. Construction Industry: used as reinforcement in concrete structures such as bridges, dams, and high - rise buildings.
4. Wind Energy Industry: It is a key material in the manufacturing of wind turbine blades. The high strength-to-weight ratio of the material allows the blades to be long and lightweight, which is crucial for efficient power generation. The blades need to withstand strong winds and harsh weather conditions, the properties of fiberglass woven roving make it suitable for this application.
Specification
| Item | Weight (g/m2) | Density | Tensile Strength (N/50mm) | |||
| Counts/inch | ||||||
| Warp | Weft | Warp | Weft | |||
| EWR200 | 200 | 35 | 35 | 1200 | 1200 | |
| EWR300 | 300 | 25 | 25 | 1800 | 1700 | |
| EWR400 | 400 | 35 | 35 | 2500 | 2200 | |
| EWR600 | 600 | 25 | 25 | 4000 | 3800 | |
| EWR800 | 800 | 20 | 20 | 4000 | 3600 | |
Competitive Advantage
1. Consistent thickness and good surface treatment.
2. Offering super structural reinforcement due to high tensile strength
3. Rapid impregnating and good compatibility with resin.
4. Uniform tension, high dimensional stability.
5. Easy to operate
