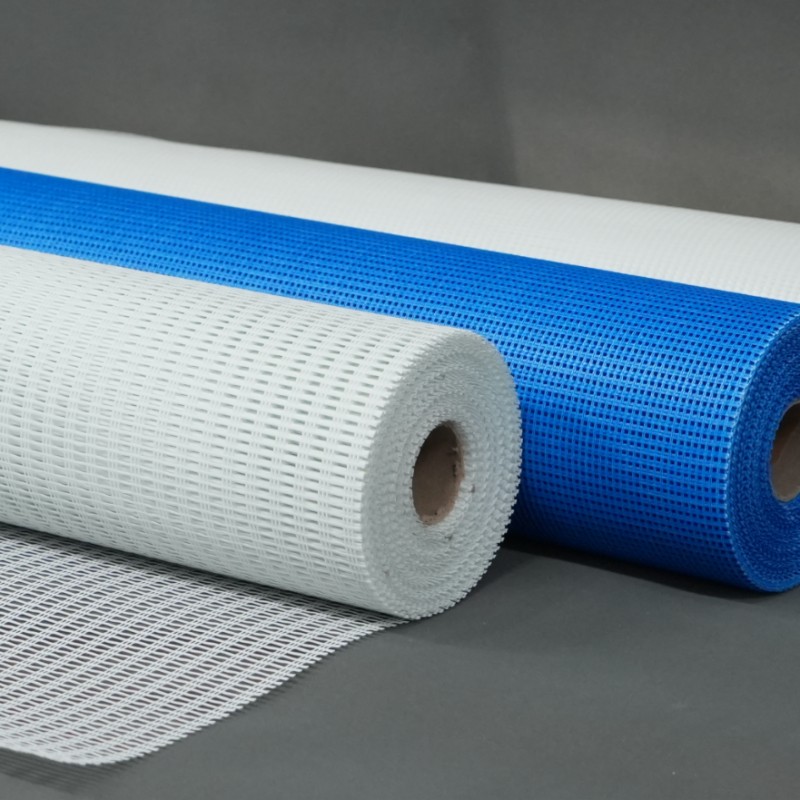

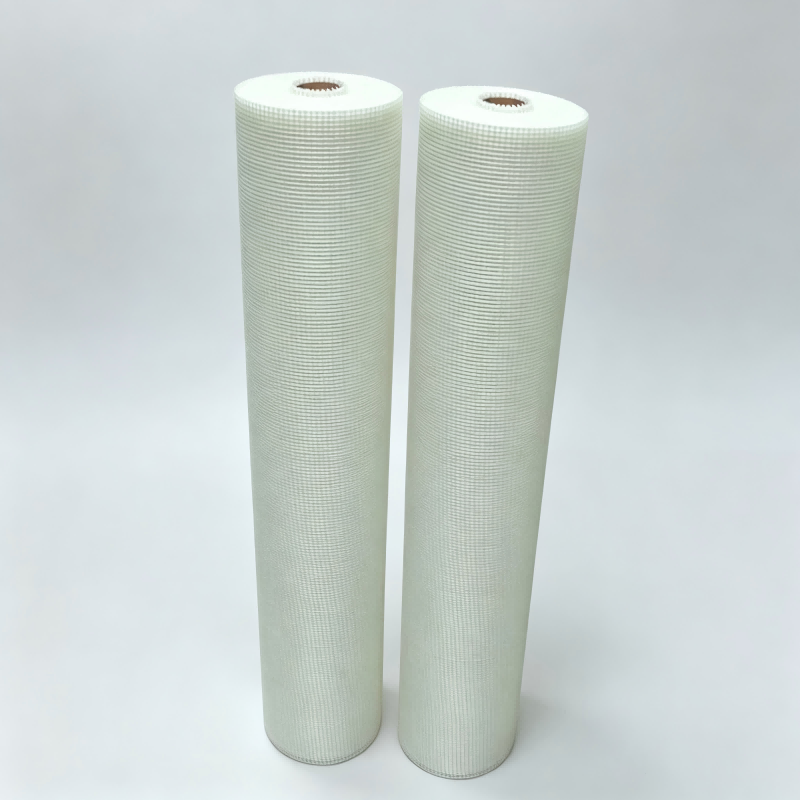

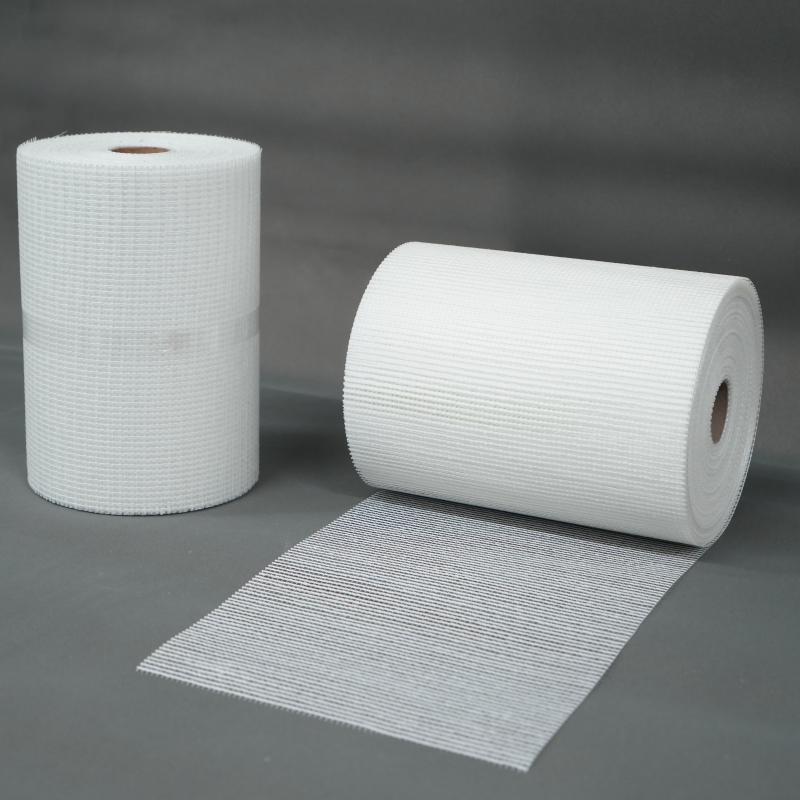

Fiberglass Alkali-Resistant Mesh For Wall Or Marble Reinforcement
Woven by C-glass or E-glass yarn, fiberglass alkaline resistant mesh is coated with alkali resistant polymer emulsion in different mass & density. Due to its good features such as high tensile strength, alkaline resistance, this reinforcing fiberglass meh is widely used as reinforcement material in wall EIFS , cement products, granite & mosaic & marble backing, and asphalt roof waterproof material, etc.
- Overview
- Recommended Products
- High weight with super strong tensile strength
- Good alkaline resistance
- Anti-corrosion
- Light weight
- Good alkaline resistance
- Excellent flexibility & joint with marble
- Special narrow size available for some items, for example, 4”/5”/6” wide & 1500m or 2000m long
- Light weight with very small mesh hole
- Good alkaline resistance
- Jumbo rolls available such as 1000m, 2000m, 3000m
Product Information
| Place of Origin: | China |
| Brand Name: | Sinpro |
| Minimum Order Quantity: | 1x20FCL |
| Price: | US$ 0.15 to 0.40 |
| Packaging Details: | Each roll packaged by plastic film |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 000 sqm per day |
Description
Woven by C-glass or E-glass yarn, fiberglass alkaline resistant mesh is coated with alkali resistant polymer emulsion in different mass & density. Due to its good features such as high tensile strength, alkaline resistance, this reinforcing fiberglass meh is widely used as reinforcement material in wall EIFS , cement products, granite & mosaic & marble backing, and asphalt roof waterproof material, etc.
With high tensile strength and low elongation, the reinforcement mesh can prevent wall from cracks, and alkaline resistant coating can protect the wall mesh while the render dries.
Known for its stable fabric quality, our Sinpro glassfibre mesh is easy to apply and cut, making it ideal for solution for internal & external reinforcement.
Regular Information
Mass per square meter: 45gsm to 600gsm

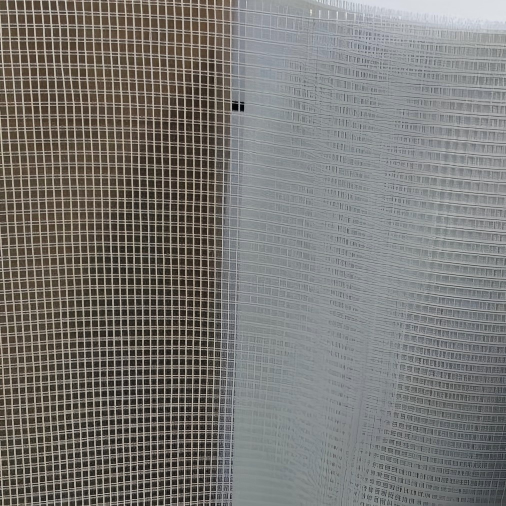

Regular grid size: 5mmx5mm; 4mmx4mm, 2mmx1mm, 1.2mmx1.25mm, 2.8mmx2.8mm, 10mmx10mm, etc.
Regular Roll Size: width: 60cm to 200cm length: 50m, 100m, 200m, etc.
Special rolls: Jumbo roll 500m, 1000m, 2000m, etc ;
Narrow jumbo rolls also available for some items
 |
 |
 |

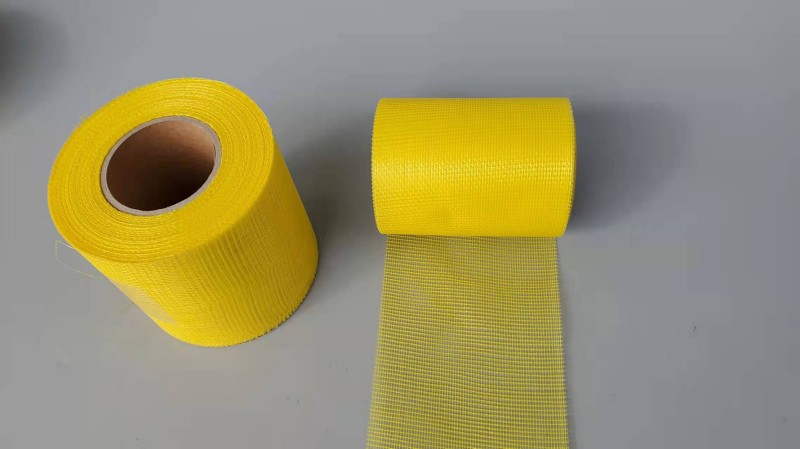

Color: mostly in white, but other colors can be available
Applications
Based on different application, Sinpro Fiberglass Mesh can be classified into 4 types:

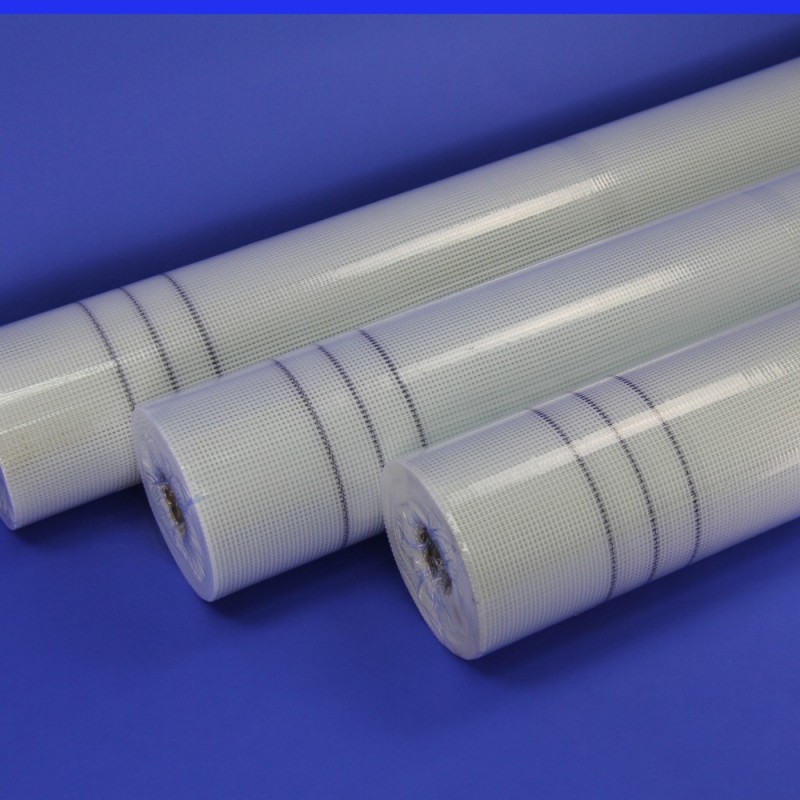

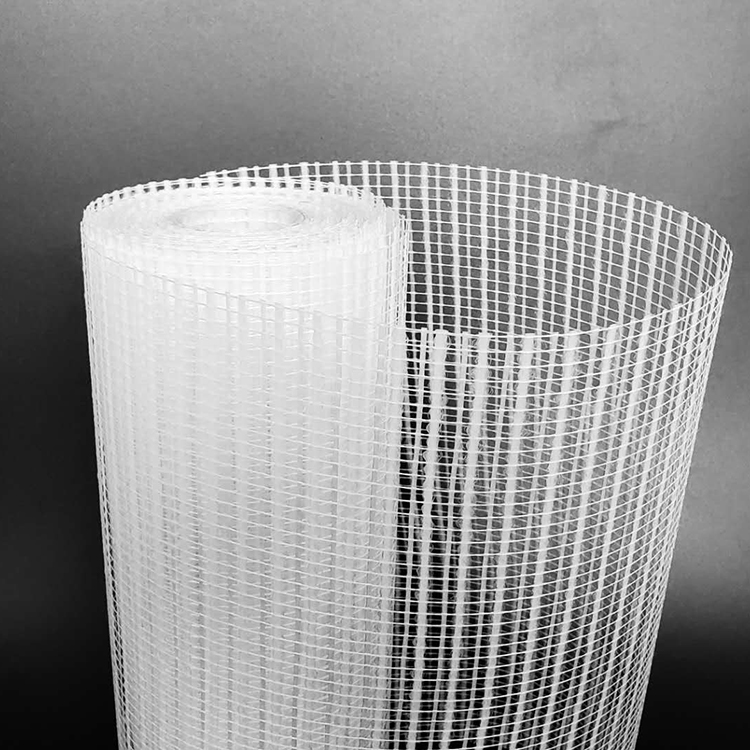

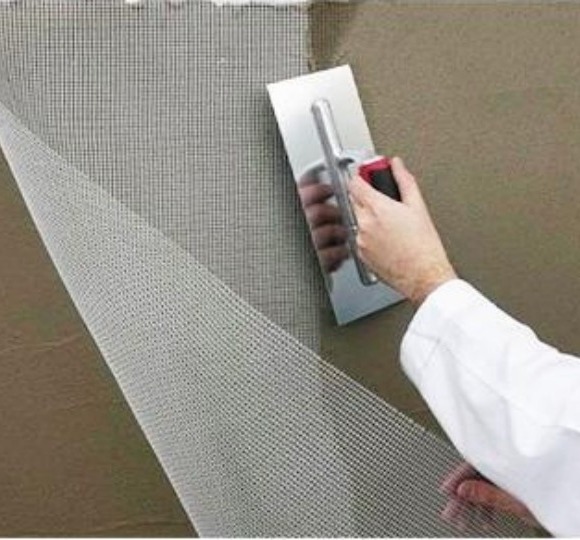

1.Wall EIFS reinforcement
 |
 |
 |
Regular Specification
| Specification | Mass | Density | Tensile Strength | Weaving | Remarks | |
| (N/5cm) | Structure | |||||
| (g/m2) | (counts/inch) | Warp | Weft | |||
| 90g-5mm*5mm | 90 | 5*5 | 900 | 900 | leno | |
| 110g-10mm*10mm | 110 | 2.5*2.5 | 900 | 900 | leno | |
| 110g-5mm*5mm | 110 | 5*5 | 1000 | 1000 | leno | |
| 125g-5mm*5mm | 130 | 5*5 | 1000 | 1200 | leno | |
| 145g-5mm*5mm | 145 | 5*5 | 1200 | 1400 | leno | |
| 160g-5mm*5mm | 160 | 5*5 | 1500 | 1800 | leno | |
| 110g-10mm*10mm | 110 | 2.5*2.5 | 1200 | 1200 | leno | |
| 200g-6mm*7mm | 200 | 4*3.5 | 1600 | 1800 | leno | |
| 300g-5mm*5mm | 300 | 5*5 | 2300 | 2500 | leno | |
 |
 |
 |

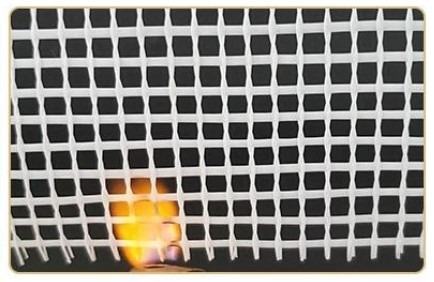

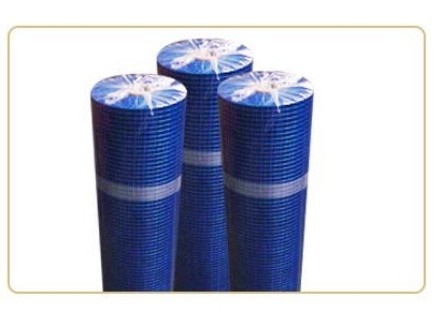

| A） Blue 110gsm or 125gsm-10mmx10mm | B) Special Structure | c) Fire-resistant mesh 4.5OZ |
Properties

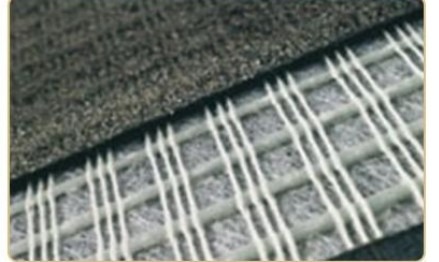

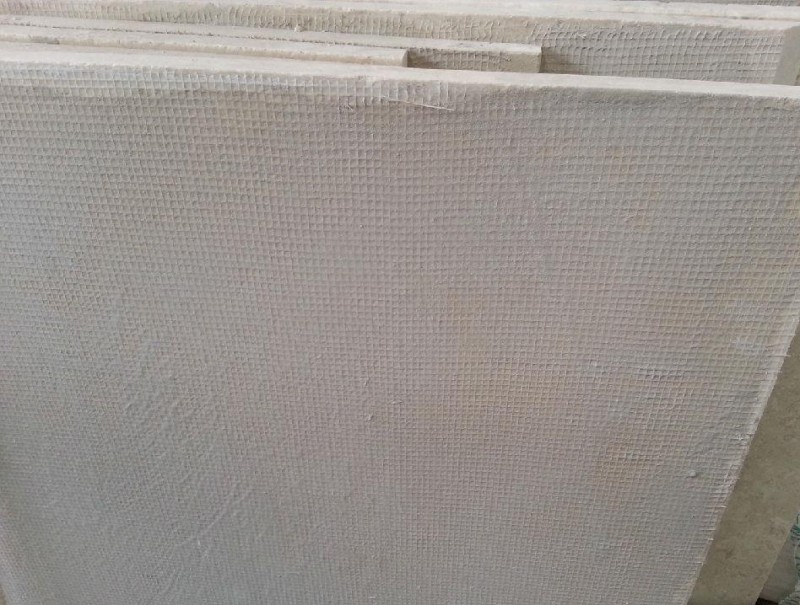

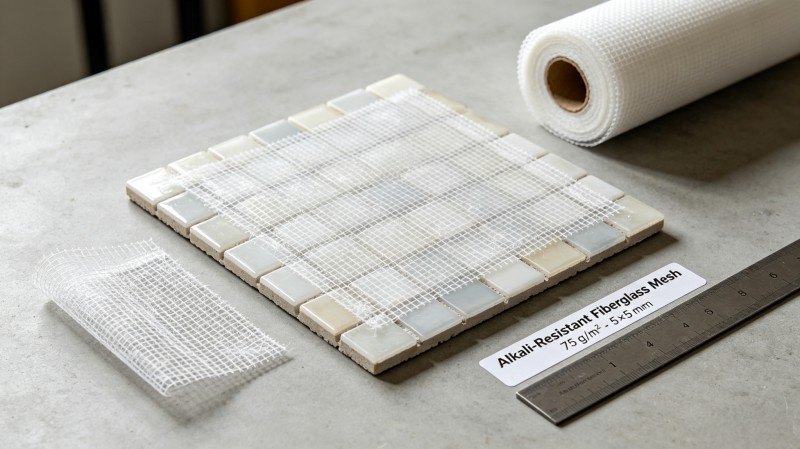

2.Mosaic & marble backing reinforcement
 |
 |
 |
Properties
 |
 |
Regular Specification
| Specification | Mass | Density | Tensile Strength | Weaving | Remarks | |
| (N/5cm) | Structure | |||||
| (g/m2) | (counts/inch) | Warp | Weft | |||
| 110g-5mm*5mm bulked yarn mesh | 110 | 5*5 | 800 | 800 | leno | 30cmx300m; or 1mx100m/200m/300m etc. |
| 75g-5mm*5mm | 75 | 5*5 | 800 | 800 | leno | 0.6m-1.9m wide, 200m or 300m long |
| 56g-3mm*3.5mm | 55 | 9*7 | 600 | 550 | leno | |
| 75g-3mm*3.5mm | 75 | 9*7 | 600 | 800 | leno | |

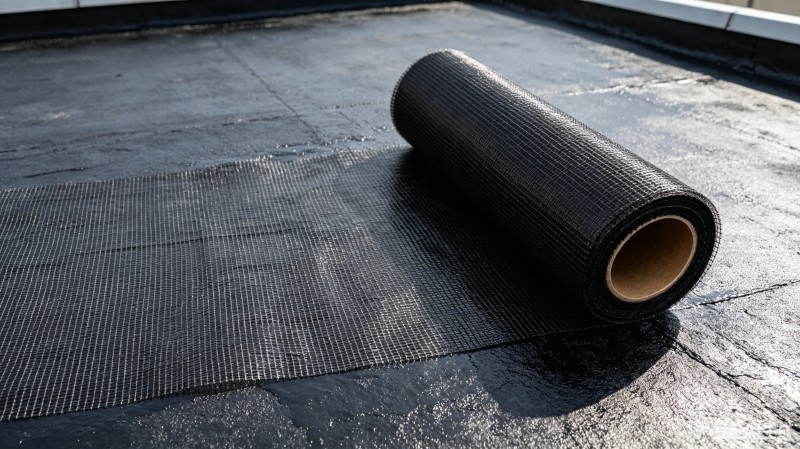

3.Roof water-proof reinforcement
 |
 |
 |
| Specification | Mass | Density | Tensile Strength | Weaving | Remarks | |
| (N/5cm) | Structure | |||||
| (g/m2) | (counts/inch) | Warp | Weft | |||
| 60g-1.2mm*2.5mm | 60 | 20*10 | 660 | 660 | plain | Regular size: |
| 1m x 100m | ||||||
| 80g-1.2mm*1.2mm | 80 | 20*20 | 800 | 800 | plain | Jumbo rolls with 1000m or 2000m available |

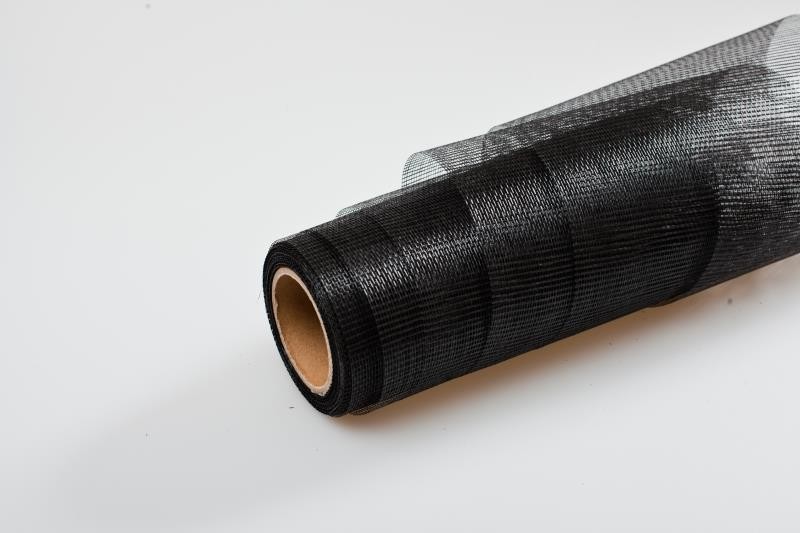

| 75g-1.2mm*2.5mm | 75 | 20*10 | 800 | 800 | plain | Black Bitumen coating |
4.Hot-melt adhesive mesh
Fiberglass hot-melt adhesive mesh is a kind of new material which will become sticky at high temperature (around 140 degree) while not sticky at normal temperature. It’s mainly used for sandwich structural composite material, especially foam material and Balsa material. Products are widely used in wind blades, yachts, high-speed rail and packaging industries. Specifications can be made based on customers’ requirement.

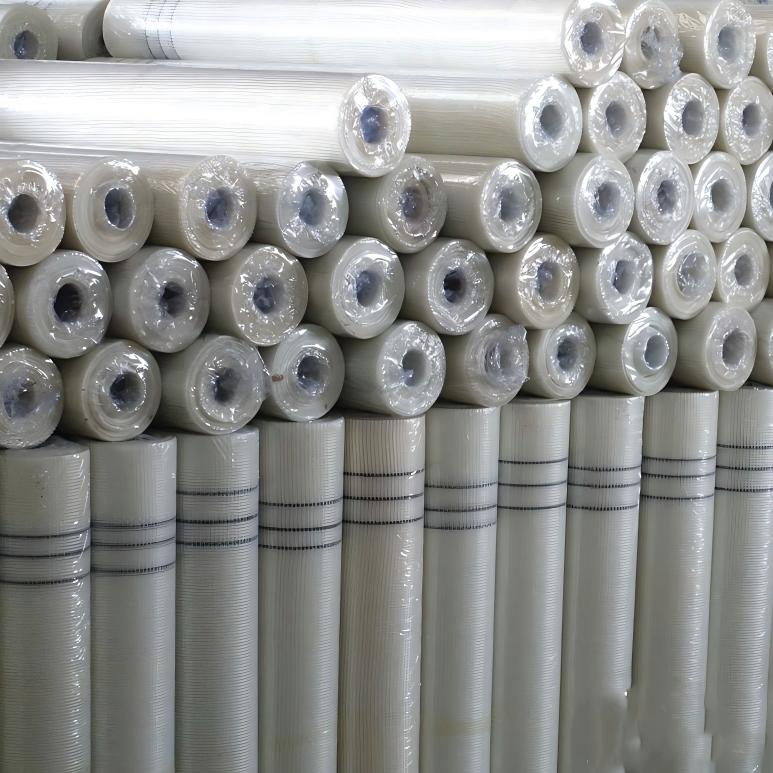

Packaging & delivery
 |
 |

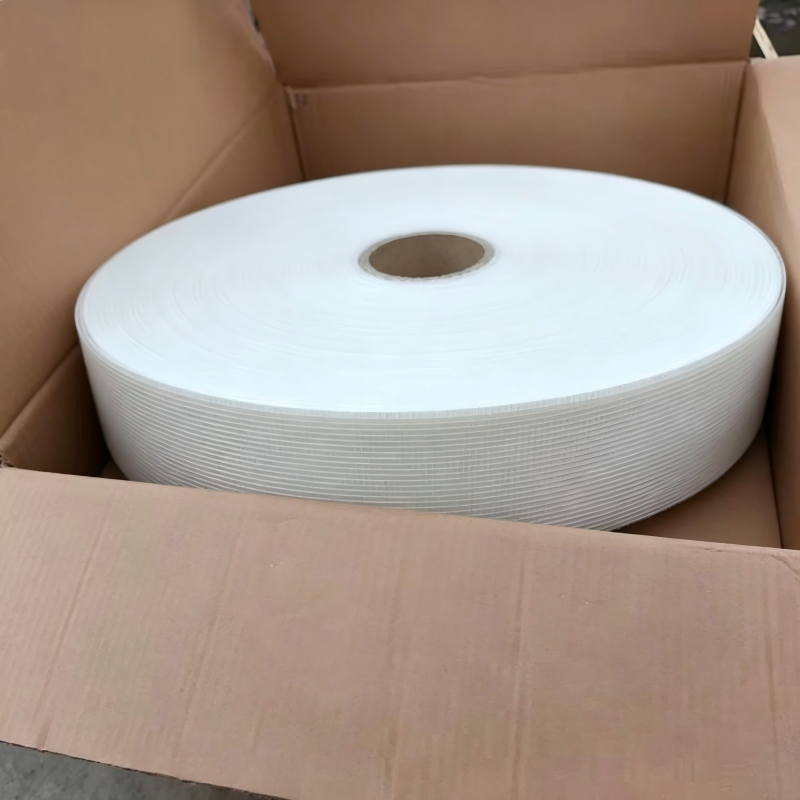

Package: each roll by plastic bag, 2-4 rolls per carton. Special specification & package can be made based on customers’ requirement
